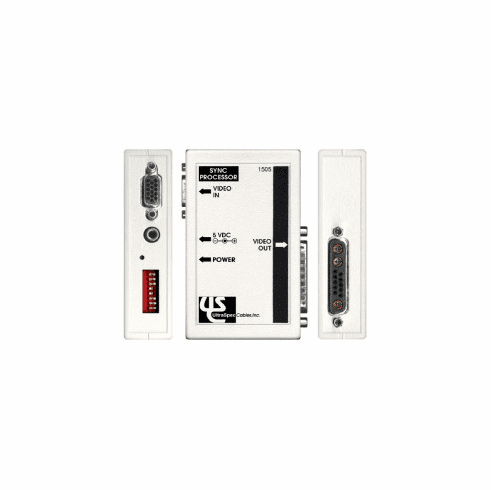

Sync Proc, HD15f in-13W3f out
Product Description
Sync Processor/Interface Adapter. Connects to standard HD15 PC video port and converts to 13W3 port. Allows redirection of sync signals to SGI, Sun, IBM, Dell pinning.
Electronically generates true sync on green, composite sync or pass through horizontal and vertical syncs.
Includes 3 ft. HD15 m/m input cable.
Low-voltage power pack is optional, unit can be powered from pin 9 of HD15 (if video card does not provide +5 volts on pin 9, optional power pack P/N 1505-PWRPAK is required)
Electronically generates true sync on green, composite sync or pass through horizontal and vertical syncs.
Includes 3 ft. HD15 m/m input cable.
Low-voltage power pack is optional, unit can be powered from pin 9 of HD15 (if video card does not provide +5 volts on pin 9, optional power pack P/N 1505-PWRPAK is required)
