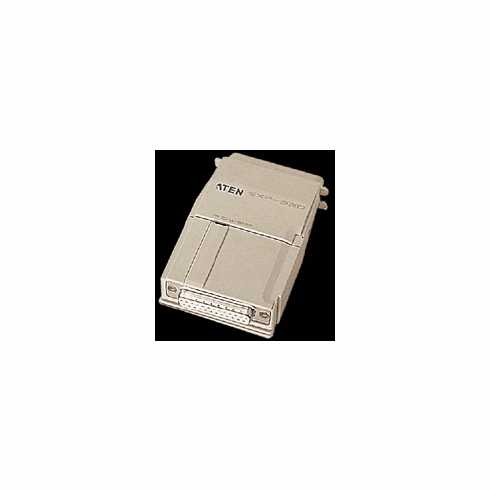

ATEN SXP-325A 256k
Bi-Directional Converter
Product Description
Both the SXP-320 and SXP-325 are bidirectional, allowing you to convert from parallel to serial or serial to parallel for data transmission. The SXP-325 provides the added benefit of 256K of memory, allowing it to serve as a printer buffer. Both units offer a DIP switch for data flow direction setting, and support hardware handshake, XON-XOFF software handshake, and have speeds of up to 38400 bps for serial transfer rates, and up to 10 Kbytes per second for parallel transfer rates. The units are small enough to make them portable for convenient operation just about anywhere.
- DIP Switch for Direction Setting (SXP-320 / SXP-325)
- Built In Buffer for Efficient Operation (SXP-325)
- Non Powered (SP-200 / PS-200)
- Easy Installation
- Compact Size
| Function | SXP-320 | SXP-325 | SP-200 | PS-200 | |||
| Connectors | Serial | RS-232 (DCE), DB-25 Female | RS-232, DB-25 Female | Centronics, C-36 Female | |||
| Centronics, C-36 Male | Centronics, C-36 Male | RS-232, DB-25 Male | |||||
| Parallel | |||||||
| Data Direction | Bidirectional | Serial to Parallel | Parallel to Serial | ||||
| Serial Mode | DCE only | DCE / DTE Selectable | |||||
| Buffer Speed | N/A | 10 KB/Sec (Max) | N/A | ||||
| Memory | N/A | 256 KBytes | N/A | ||||
| Baud Rate | 300-38400 bps | 150-19200 bps | |||||
| Data Bits | 7 or 8 | ||||||
| Stop Bits | 1 or 2 | ||||||
| Parity | None, Odd or Even | ||||||
| Handshake | Hardware or XON-XOFF | ||||||
| LEDs | Power On | N/A | |||||
| Function Keys | Reset | N/A | |||||
| Power Consumption | AC 9V 150mA (Max) | N/A | |||||
| Case | Plastic | Metal | |||||
| Weight | 120g | 190g | |||||
| Dimensions (L x W x H) | 101 x 62 x 25 mm | 101 x 62 x 23 mm | |||||
