Sangoma A102U
Zoom

Sangoma A102U

Item# A102U
$899.00
$999.00
Availability: not set

Product Description


Technical Specifications

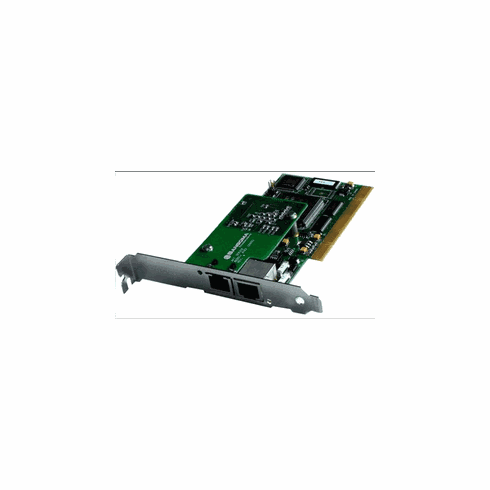

  • Dual T1/E1 port (A102U) with daughterboard (as shown in photograph).
  • Intelligent hardware: Downloadable Field Programmable Gate Array programming with multiple operating modes.
  • T1/E1 and fractional T1/E1, single channel HDLC per line. Power: 800mA peak, operational 300mA max at +3.3v or 5v.
  • MTBF: > 1 Million hours.
  • PCI 32 bit (5v and 64 bit (3.3v) compatible.
  • Temperature range: 0 – 50C.
  • All set-up and configuration is in software or by machine BIOS.
  • DSU/CSU set up entirely in software.
  • Line decoding: HDB3, AMI, B8ZS.  Framing: CRC4, non-CRC4, ESF, D4T1/E1.
  • Clocking mode: Normal, Master.
  • Software controlled DSU/CSU test modes.
  • Remote monitoring of card and CSU/DSU operation.
  • Dimensions: 2U Form factor: 120mm x 55 mm.
T1/E1 Status alarms
  • ALOSV: Loss of Signal alarm
  • LOS: Receive Loss of Signal  ALTLOS: Alternate loss of Signal Status
  • OOF: Out of Frame
  • RED: Telco Red Alarm condition
  • AIS: Alarm Indication Signal
  • OOSMFV: Loss of Signaling Multiframe
  • OOCMFV: Loss of CRC Multiframe
  • OOOFV: Out of Off-Line Frame
  • RAIV: Receive Loss of Signal
  • YEL: Receive Telco Yellow Alarm
Line protocols
ATM, Frame Relay, X.25, HDLC, PPP, SS7, Transparent bit-stream, BSC.
Operating systems
Linux (all versions, releases and distributions from 1.0 up), FreeBSD, Open BSD, NetBSD.
Higher level protocols
IP/IPX over Frame Relay/ PPP/ HDLC/ X.25, X.25 over Frame Relay (Annex G), BSC over X.25 (DMT and TCOP), SNA over X.25, PPPoE, PPPoA, IP over ATM.
Warranty
Three years parts and labour.
Certification
FCC Part 15 Class A, FCC Part 68, CE.
Diagnostic Tools
WANPIPEMON, SNMP, System logs.
Production quality
ISO 9002
