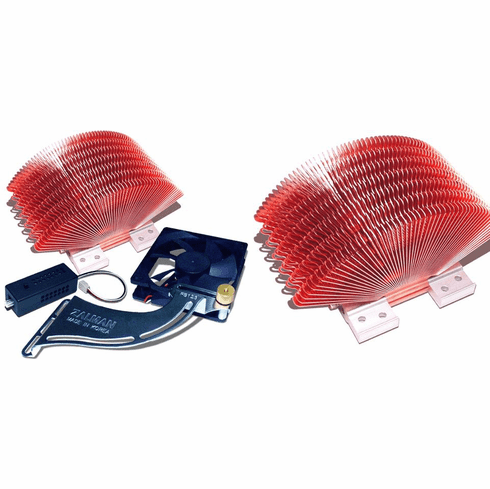

Zalman CNPS6500A-Cu
Product Description
Features |
1. Zalman's CPU Coolers do not generate noise and vibration in Silent Mode.
2. The heat dissipating material of the Flower HeatSink (FHS) is Pure Copper.
3. Separation of the FHS from the CPU fan prevents transfer of the fan's vibration to the CPU.
4. By utilizing a 92mm fan, both the CPU and the motherboard chipset are cooled.
5. The cooling fan can be mounted at any desired location, making it compatible with virtually all computer cases and motherboards
(Note: computer cases that have the power supply covering the CPU can not be used).
6. With the included adjustable fan speed connector, the user can freely adjust the CPU fan's RPM.
7. CPU can be cooled to a temperature sufficiently below the temperature required by the CPU manufacturer in Silent Mode.
8. Zalman's CPU Coolers enable very stable operation of a CPU in an OVERCLOCKED environment.
* When OVERCLOCKING, the fan must be in Normal Mode.
* We are not responsible for any damage to a system or a CPU caused by CPU OVERCLOCKING.
| Parts | |
| 1. FHS : ZM6568CD-Cu 2. NP FAN & Bracket : FB123 3. For placing FHS - Bolts A(21mm), B (17mm) - four each 4. For placing Nipples- four Bolts C (8mm) 5. For placing FB123 - Bolts D (inch type).... Bolts E (mm type) - three each 6. Four Tapered Springs 7. Four Nipples (spacers) 8. One Adjustable Fan Speed Connector (FAN MATE 1) 9. Thermal Grease 10. One packet of spare components |
|
| Specifications |
1 ) FHS
| FHS | Specifications | |
| Part Number | ZM6568CD-Cu | |
| Dimensions (mm) | 115~120 (L) x 94 (W) x 65 (H) | |
| Dissipation Area (cm2) | 3300~3400 | |
| Base Material | Pure Copper | |
| Weight (g) | *914 | |
| Thermal Resistance(Deg.C/W) | Silent Mode | 0.33 |
| Normal Mode | 0.28 | |
| *The
maximum weight for a heatsink is specified as 450 g by Intel(Pentium
4). If a heatsink which exceeds the relevant weight limit is installed
in a computer , special care should be taken when the computer is
moved. Zalman Tech. Co., Ltd. is not responsible for any damage to
a system or a CPU occurring when moving a computer with an overweight
heatsink. |
2)FAN
| Fan | Silent Mode | Normal Mode |
| Dimensions(mm) | 92(L) X 92(H) X 25(W) | |
| Weight (g) | 88 | |
| Rot. Speed | 1300 RPM +- 10% | 2500 RPM +- 10% |
| Noise Level (dB) | 20.0 | 32.0 |
| Bearing Type | Sleeve | |
3) FAN RPM Controller
| FAN MATE 1 | Specifications |
| Dimensions (mm) | 200 (L) X 21(H) X 23 (W) |
| Weight (g) | 20 |
| Output Voltage | 5 ~ 11 V +-2% |
| Allowable Wattage | 6W or lower |
>
INTEL Pentium 4 (Socket 423, 478)
| Core Type | Willamette (0.18 micron) | Northwood (0.13 micron) |
| Silent Mode | 2.0GHz | Over 3.06GHz |
| Normal Mode |
